FIG:A	FIG:B	FIG:C
FIG:D	FIG:E	FIG:F
FIG:G	FIG:H	FIG:I
FIG:J	FIG:K	FIG:L
FIG:M

FIG	PART NO	D	O	L
B	5-100X	25.4	39.5
A	5-101X	23.82		61.3
B	5-103X	23.82	35
A	5-10X	30.188		106.35
A	5-111X	23.82		61.3
A	5-113X	27		81.78
B	5-1200X	27	57.4
B	5-1201X	27/28.6	55.5
B	5-1203X	27	67.6
A/B	5-1204X	27/28.6	67.6	92
A	5-12062X	48.05		161
B	5-1206X	30.188	76.28
A	5-12100X	45		120.4
A	5-121X	27		81.75
B	5-12213X	38	57.2
A	5-12219X	48.05		125.8
A	5-12265X	19.1		47.6
A	5-12276X	44		149
A	5-12278X	50		164
A	5-12924X	52		133
A	5-12932X	57		152
A	5-12072X	57		163
B	5-1301	31.3	71.5
B	5-1306X	27.4	50.8
B	5-1309X	28.6	63.96
A/B	5-1312X	28.6/28.58	60	91
A	5-134	27		92/81.7
A	5-13400X	23.82		61.2
B	5-1501X	25.02	40
B	5-1502X	26	41.76
B	5-1503X	25.02	39.8
B	5-1505X	28.02	52.9
B	5-1506X	38	57.2
B	5-1508X	26.03	53.64
A	5-1509X	28.52		77.7
B	5-1510X	29	49
B	5-1511X	32	61
B	5-1514X	22.52	34
A	5-1516X	25		76.5
A	5-153X	27		81.78
A	5-155X	34.93		126.22
A	5-160X	30.188		106.35
A	5-165X	41.24		142
B	5-170X	23.83	34.85
A	5-178X	30.188		92.075
A	5-188X	34.93		106.31
A	5-200X	27		81.78
A/B	5-212X	27.02/28.6	60.2	92
A	5-213X	27.02		92
A/B	5-248X	25.39/27	38.6	62
A	5-251X	27		81.75
B	5-2532X	28.6	49
B	5-260X	27	52.5
A	5-263X	34.93		106.31
B	5-273X	27	67.6
A	5-275X	34.93		126.22
B	5-297X	30.2	52.5
B	5-297X-1	30.2	52.5
B	5-3011X	28.6	59.9
A/B	5-3022X	27/28.6	60.2	81.78
B	5-3147X	28.6	60.2
B	5-350X	27	56.8
B	5-353X	27/27.4	50.8/56.8
A	5-431X	33.3		67.48
A	5-443X	27.01		61.95
A/B	5-450X	27.01/27	52.5	81.78
A	5-4X	27.01		74.6
A/B	5-544X	28.6/27	60	81.4
B	5-74X	27	52.4
B	5-92X	24.6	34.36
B	AM-12R	27.04	41.8
A	AM-14R	28.6		66.5
A	AM-35R	31.75		81.4
A	AP0-10	22		54.8
A	AP0-35	32		76
A	AP1-00	22		54
A	AP3-11	26.98		70
A	AP4-21	26.98		74.6
A	C01	18		47
A	C737	23.84		61.2
A	C741	27.01		74.65
A	C770	27.01		81.75
A	C771	30.2		106.3
B	CZ276	68	89
A	CZ280	65		190
A	EG10	22.02		54.15
A	EG20	23.82		61.45
A	EG30	27.02		70.15
A	EG40	27.02		74.8
A	EG50	30.22		80.15
A	EG60	30.22		92.2
A	EG70	30.22		106.7
A	EG80	34.92		106.5
A	GU1000	27		81.78
A	GU1000C	27		81.78
A	GU1100	27		74.6
A	GU1100C	27		74.6
A	GU1700	22		54.8
	GU1740	31.02	45	76.5
A	GU2010	32		106.28
A	GU2791	27		85.6/91
A	GU2781	27.1		81.1
A	GU3100T	30.2		99.6
A	GU1380C	22		54
A	GU1760	22		67.5
A	GU1780	27		80
A	GU2000	30.188		106.35
A	GU2050	30.188		106.35
A	GU2050C	30.188		106.35
A	GU2200S	30.188		92.075
A	GU2200C	30.188		92.075
A	GU2300	34.93		106.3
A	GU2300C	34.93		106.3
A	GU2488	24		88
A	GU2788	27		88
A	GU2892C	28.6		92
A	GU3078C	30		78
A	GU3082	30.18		81.8
A	GU3500	39.675		115.42
A	GU3593	35		93
A	GU3598	35		98
A	GU3650	38		110.5
A	GU3689	36		89
A	GU3689T	36		89
A	GU3800	44		126
L	GU3810	50		152.6
A	GU3860	50		164
A	GU4002	47.65		135
A	GU400N	23.82		61.3
A	GU4126	41.27		126
A	GU4420	49.2		154.9
A	GU4835	48		135
A	GU500	23.82		61.3
A	GU500C	23.82		61.3
A	GU500NNS	23.82		61.3
A	GU500T	23.82		61.3
B	GU6889	68	89
A	GU6065	60		163.2
A	GU6572	65		172
A	GU7285	72		185
A	GU7431	31		88
A	GU7440	38		105.6
A	GU7560	52		133
A	GU7648	48		116.5
A	GU7630	57		152
L	GU7630P	57		152.6
A	GU7650	48		126
A	GU8100	47		132
A	GU8120	55		164.2
A	GU9200	57		172
A	GU9810	42		106
A	GUA-10	30		82.1
A	GUA-14	32		75.9
A	GUA-20	36.04		89
A	GUK-12	27		80
B	K1507	28	55.6
B	K1513	26.52	48
A	K5-13XR	26.99		81.76
A	K5GB10R	30.16		106.35
A	KC2832ADW	40		115.6
J	KC2932ADW	44		129
A	QC960714	26		69.8
A	QC960715	30		81.8
B	RUJ1776SL	26	41.76
B	RUJ1780	20.02	34.7
B	RUJ1781SL	25.02	40
B	RUJ1786	25.4	39.5
B	RUJ2016	26.03	53.64
B	RUJ2028	28.02	52.9
B	RUJ2030	25.4	55
B	RUJ2038	27.39	50.95
B	RUJ2041	32	61
B	RUJ2100	29	49
B	RUJ3007	32	68.2
A	SPL140-1	49.2		139
A	SPL170-1X	55.02		164.2
A	SPL250-1X	60		163
A	SPL90-1X	41.28		126
A	ST1538	15		38
A	ST1539	15		39
A	ST1540	15		40
A	ST1638	16		38
A	ST1639	16		39
A	ST1640	16		40
A	ST1940	19		48
L	U380	44		126
L	U381	50		152.6
A	U384	44		149
A	U388	50		164
A	U447	42.12		104.5
A	U728/4	24.09		74.55
B	U730	38	57.2
A	U743	35		96.8
A	U744	38.03		105.6
B	U747	42	66
A	U753	45		120.4
A	U756	52		133
A	U761	53		135
A	U762	48.05		125.8
A	U763	57		152
A	U765	48		126
A	U767	48.03		116.5
A	U810	47		131
A	U813	57		144
A	U924	65		190
A	U948	48		161
A	U981	42		106
A	U982	65		172
A	U983	72		185
A	U984	34		89
A	U985	47		138
A	U986	50		159
L	U990	57		152.6
B	U992	68	89

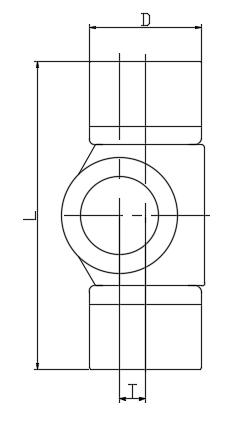

FIG	PART NO	D	T	L
M	GU3080	30	5	80
M	GU3510	35	8	96.8
M	GU3580	38	9	104
M	GU3807	38	7.5	107.5
M	GU4104	40	9	104.3
FIG	PART NO	D	L1	L2
D	5-438X	47.62	135	135
D	5-515X	49.2	154.7	157.1
D	5-469X	49.2	177.98	179.98
D	5-510X	49.2	191.69	194
D	5-674X	47.62	135	135
D	5-675X	49.2	154.7	157.1
D	5-676X	49.2	191.69	194
D	5-677X	49.2	177.98	179.98

FIG	PART NO	D	L
C	5-115X	39.68	115.42
C	5-279X-1	47.62	135
C	5-280X-1	49.2	154.9
C	5-407X-1	49.2	178
C	5-281X-1	49.2	191.9
C	5-124X	58.979	167.58
C	5-308X	55.5	206

U-JOINT WITH 2 WELDED PLATE TYPE AND 2 HIGH WING BEARINGS

FIG	PART NO	D/CTOC	L1/L2
E	5-324X	49.22/71.45	191.69/209.55
E	5-326X	55.55/71.45	205.59/209.55
FIG	PART NO	D/CTOC	L1/L2
H	5154X	33.35/42.85	84.023/114.96
H	5-2031X	25.4/33.34	55.2/79.22
H	5-2033X	25.4/33.34	54.79/79
H	5-345X	30.18/36.5	106.29/107.9
H	5-4016X	28.5/36.5	77.9/108
H	HD205-3	41.5/49.2	104.5/148.4
H	W-6139X	33.35/42.88	104.25/140.25
H	W-7300	41.28/49.2	104.5/148.4
FIG	PART NO	D/CTOC	L1/L2
G	5-303X	34.92/42.8	126.1/140.4
G	5-330X	41.2/49.2	142/148.2
G	R221	34.92/42.8	126/140.4
G	CP20RPL-1	52.32/71.4	174.75/179.55
G	CP25RPL-1	52.32/71.4	208.28/213.34

FIG	PART NO	D	CTOC	L1	L2
K	GU9460	38	75	148	122
K	GU7655	48.05	85	161	132
K	GU8150	57	95	164	126

KOMATSU
FIG	PART NO	CTOC	D	L
F	GUKO-1	33.32		79.2
F	GUKO-2	33.32		79.22
F	GUKO-3	33.32		79.22
F	GUKO-4	36.4		107.98
F	GUKO-5	42.88		115.05
F	GUKO-6	42.88		140.45
F	GUKO-8	71.44		165.01
F	GUKO-12	33.32		79.22
A	GUKO-13		23.82	61.3
F	GUKO-15	49.2		148.38
A	GUKO-17		30.18	92.05
F	GUKO-18	42.88		115.05
F	GUKO-19	42.88		115.05
F	GUKO-20	36.4		107.98
F	GUKO-21	42.88		140.45
F	GUKO-22	42.88		140.45
F	GUKO-23	36.4		107.98
F	GUKO-25	36.5		107.82
F	GUKO-26	42.88		140.45
F	GUKO-27	49.2		148.38
F	GUKO-28	42.88		115.05
H	GUKO-29	42.88	33.33	140.45/104.7
H	GUKO-30	42.88	32	115.05/79

TOYOTA

FIG	PART NO	D	O	L
A	GUT-11	20		57
B	GUT-12	26	53.6
B	GUT-13	26	42
A	GUT14	28.5		77.7
A	GUT15	34		107
I	GUT-16	40		118
B	GUT-17	29	49
A	GUT19	20		57
B	GUT-20	32	61
B	GUT-21	29	49
B	GUT-23	29	49
A	GUT-24	22.08		57.3

NISSAN

FIG	PART NO	D	O	L
B	GUN25	32	64
A	GUN26	23.82		61.3
B	GUN27	25	40
B	GUN28	20.01	35
B	GUN29	28	53
A	GUN30	30.188		92.08
J	GUN31	32		107
A	GUN32	35.5		119.2
J	GUN41	43		135.5
J	GUN43	55		163.8
A	GUN44	20.5		56.6
B	GUN46	27	46
A	GUN47	27		81.75
A	GUN48	27		81.75

MITSUBISHI

FIG	PART NO	D	O	L
J	GUM71	44		129
A	GUM73	27		81.75
A	GUM76	25.02		77.6
A	GUM78	25		63.8
A	GUM79	25		63.8
J	GUM80	46		142
A	GUM81	25		63.8
J	GUM83	52		153.8
A	GUM85	22.08		64.4
A	GUM86	28.52		77.7
A	GUM87	30		78.2
A	GUM88	25		76.5
J	GUM90	46		148
A	GUM91	25		76.7
B	GUM93	30	55.1
J	GUM96	52		170

DAIHATSU

FIG	PART NO	D	O	L
A	GUD81	20		55
A	GUD82	28.02		80
A	GUD84	28		80
B	GUD88	22.5	34.9
B	GUD89	30	55

ISUZU

FIG	PART NO	D	O	L
A	GUIS51	23.82		61.3
B	GUIS52	29	50
J	GUIS55	42		125
A	GUIS56	23.82		61.3
J	GUIS57	48		145
A	GUIS59	20.5		56.6
F	GUIS60	49.2		148.38
A	GUIS61	23.82		61.3
A	GUIS62	35		103.92
A	GUIS64	40		114.9
J	GUIS65	45.98		136
A	GUIS66	33		93
F	GUIS67	56		173.9
J	GUIS68	50		155
A	GUIS69	27		81.75
B	GUIS70	29	49
B	GUIS71	29	49

SUZUKI

FIG	PART NO	D	O	L
B	GUS1	25	40.4
B	GUS2	20	35
A	GUS6	20.06		59.8
A	GUS7	25		63.9

MAZDA

FIG	PART NO	D	O	L
A	GUMZ-1	25		63.8
B	GUMZ-3	32	57
B	GUMZ-6	28	55.8
B	GUMZ-7	25.02	41
B	GUMZ-8	37	67
B	GUMZ-9	26.53	48
B	GUMZ-10	22.5	35
A	GUMZ-11	22.06		59.6
A	GUMZ-12	24.06		71.4

HINO

FIG	PART NO	D	O	L
A	GUH60	40		115
A	GUH63	35		99
I	GUH64	50		159
A	GUH65	36		110.3
J	GUH68	47		144
J	GUH70	47		138
J	GUH72	47		144
J	GUH73	50		165
A	GUH74	36		115
J	GUH75	58.03		175
FIG	PART NO	CTOC	L	BEARING QUANTITY AND TYPE
F	5-8200X	49.2	206.31	4LWT
F	5-5800X	49.2	134.8	4HWD
F	5-5801X	49.2	134.8	4DWT
F	5-5802X	49.2	134.8	2LWT,2HWD
F	5-9016X	71.44	209.62	4HWD
F	G5-2117	33.34	79	4LWD
F	5-4143X	36.5	108	4HWD
F	5-6106X	42.7	140.2	4HWD
F	5-8201X	49.2	206.31	2LWT,2LWD
F	5-8203X	49.2	206.31	4HWD
F	5-2002X	33.34	79	4LWT
F	5-2116X	33.34	79	2LWT,2LWD
F	5-4123X	36.5	108	2LWT,2LWD
F	5-4002X	36.5	108	4LWT
F	5-4140X	36.5	108	2LWT,2HWD
F	5-5000X	42.88	115.06	4LWT
F	5-5121X	42.88	115.06	2LWT,2LWD
F	5-5173X	42.88	115.06	2LWT,2HWD
F	5-5177X	42.88	115.06	4HWD
F	5-7202X	49.2	148.4	2LWT,2HWD
F	5-7000X	49.2	148.4	4LWT
F	5-8105X	49.2	206.4	4HWD
F	5-8202X	49.2	206.31	2DWT,2HWD
F	5-8500X	71.6	165	4LWT
F	5-8515X	71.8	165	2LWT,2HWD
F	5-8516X	71.8	165	4HWD
F	5-6102X	42.88	140.45	2LWT,2HWD
F	5-6000X	42.88	140.45	4LWT
F	5-7105X	49.2	148.4	4HWD
